TGIL-BCS-001
Product Overview

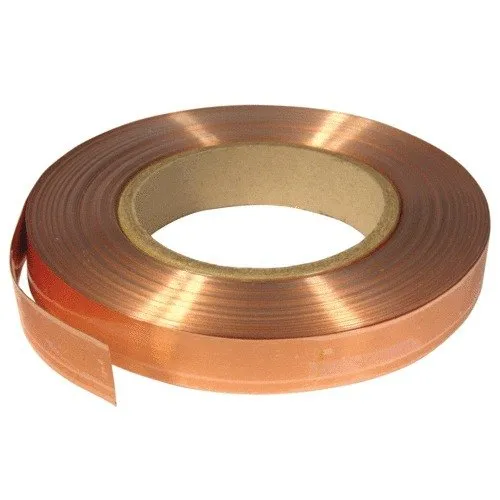

High-conductivity mirror-finish oxygen-free copper strips. Essential for earthing & lightning protection grids, transformer windings, and RF electronic shielding.
Technical Specifications
| Product Code | TGIL-BCS-001 |
|---|---|
| Purity | OFC 99.99% Cu (101% IACS) |
| Size Range | W 5 – 80 mm × T 1 – 5 mm (5 – 400 mm²) |
| Temper / Hardness | Soft (Elongation ≥ 38%) |
| Tensile Strength | Min 200 MPa |
| Surface Roughness | Mirror finish (Ra ≤ 1.6 µm, Camber ≤ 3mm/m) |
| Standards | ASTM B152/B152M, BS EN 13599, GB/T 2040, IS 1897, BS EN 13601:2013, BS 1432,JIS H3100 |
