TGIL-CER-001
Product Overview

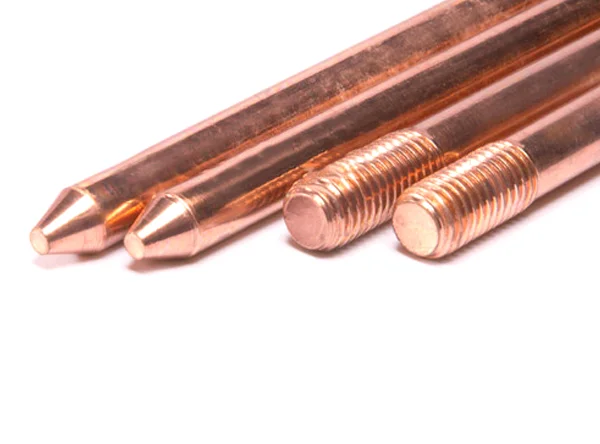

Solid copper earthing rods featuring metric internal and external threading. Provides low-resistance fault current dissipation for power station and building surge protection.
Technical Specifications
| Product Code | TGIL-CER-001 |
|---|---|
| Purity | OFC 99.99% Cu (≥ 100% IACS) |
| Standard Size | Ø 12 – 25 mm (Cross-section 113 – 490 mm²) |
| Available Lengths | 1.2 m · 1.5 m · 2.4 m · 3.0 m |
| Thread Pitch | Metric M12: 1.75mm · M16: 2.00mm · M20: 2.50mm |
| Standards | ASTM B49 · BS EN 13601 · IEC 62561-2 |
Related Products

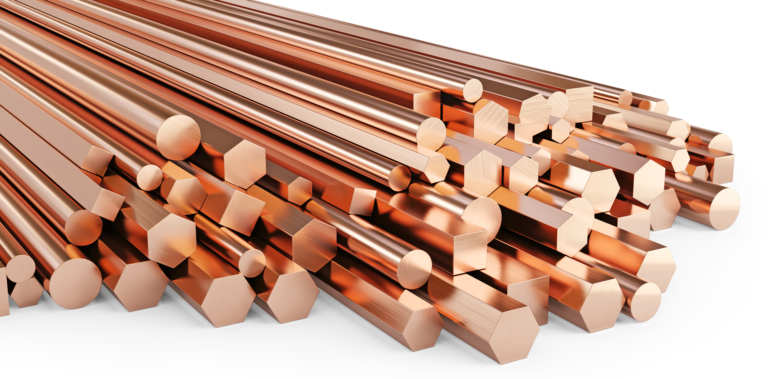

Hexagon Copper Bars
High-precision hexagonal oxygen-free copper bars manufactured for electrical fasteners, threaded fittings, connectors, and specialized industrial components.

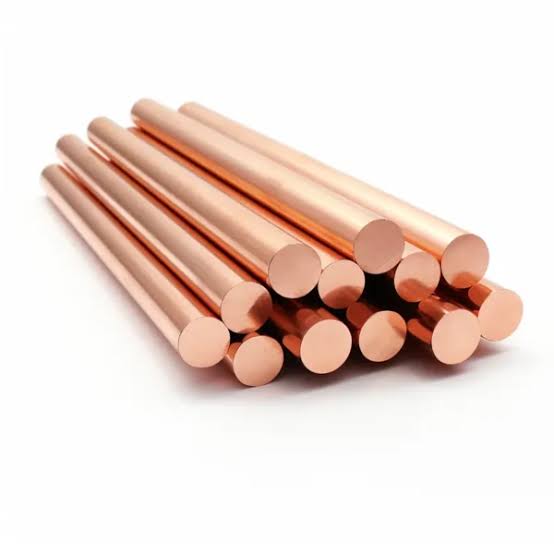

Round Copper Bars
