TGIL-CBB-001
Product Overview
High-conductivity oxygen-free flat copper bus bars resistant to hydrogen embrittlement. Engineered for power distribution switchboards, busducts, and electrical transformers.
Technical Specifications
| Product Code | TGIL-CBB-001 |
|---|---|
| Purity & Conduct. | OFC 99.99% Cu (101% IACS) |
| Size Range | W 10 – 170 mm × T 6 – 25 mm (60 – 2000 mm²) |
| Condition | Soft / Half Hard / Full Hard |
| Edge Profiles | Sharp · Round · Full-Radius · Hexagon |
| Lengths | Custom / cut lengths (Standard 3 m & 4 m) |
| Standards | ASTM B187/B187M, BS EN 13601:2013/ BS 1432, GB/T 5585, IS 613, IS 1897, JIS H3140 |
Related Products

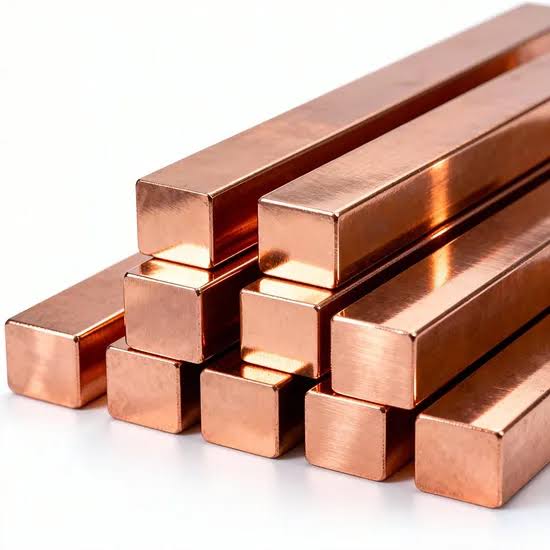

Square Copper Bar
Precision-extruded square oxygen-free copper solid bars designed for heavy-duty electrical distribution, transformer terminals, and structural bus systems.

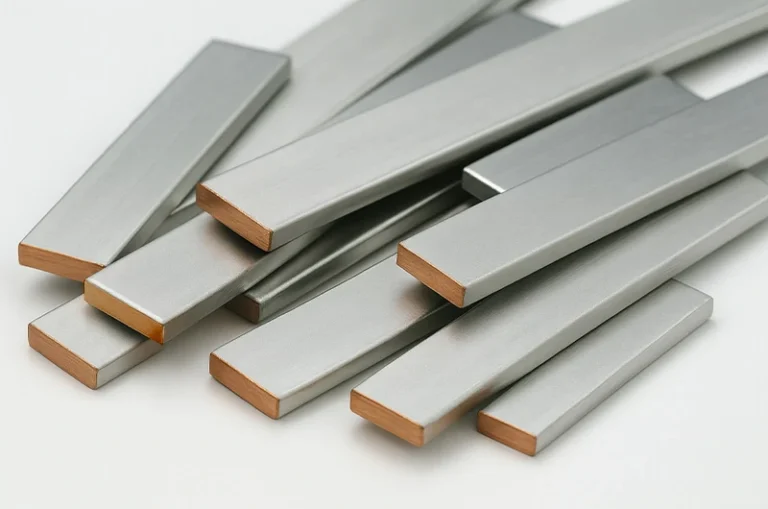

Tin-Plated Copper Bus Bar (Up to 8-Micron Coating)
