TGIL-TPB-001
Product Overview

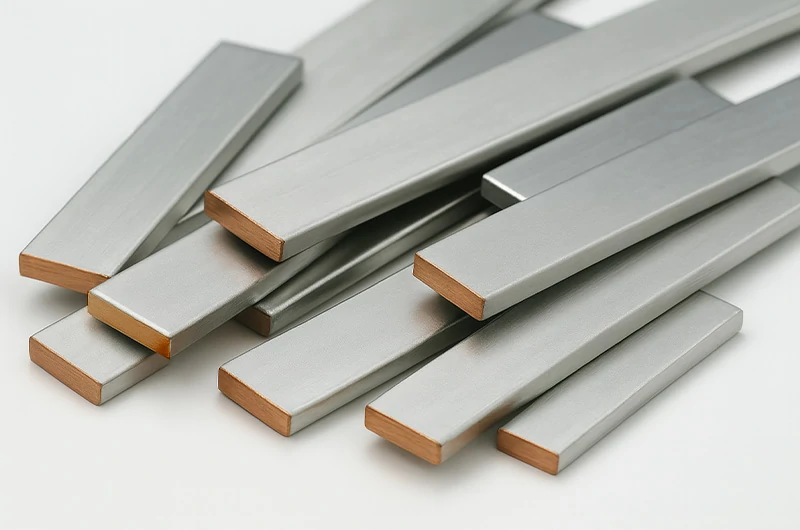

Tin-plated (up to 8 microns) electrolytic copper bus bar providing unmatched corrosion resistance, superior solderability, and minimal electrical losses in outdoor panels.
Technical Specifications
| Product Code | TGIL-TPB-001 |
|---|---|
| Purity & Base | OFC 99.99% Cu (≥ 100% IACS base) |
| Tin Coating | Up to 8 microns (Tolerance ±1 µm) |
| Size Range | W 10 – 170 mm × T 6 – 25 mm (60 – 2000 mm²) |
| Temper | Half Hard / Fully Annealed |
| Finish | Bright tin plating |
| Standards | ASTM B187 / ASTM B545, BS EN 13601:2013, GB/T 5585, IEC 60468, IS 13596 |
